Improved looks and ground clearance.
Are you looking to raise your Volkswagen Amarok? Want a better ride?
Then Pedders Suspension have the solution for you.
There are two options for this kit (please choose from the drop-down box above)
Foam Cell Shocks
Our Premium Lift kit, and features our excellent Pedders TrakRyder Foam Cell shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.
Gas Cell Shocks
This kit is our Entry Level Lift kit and features our excellent Pedders TrakRyder Gas Cell shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.Both kits are designed primarily to raise the vehicle and retain the ride on vehicles that do not normally carry a great deal of weight. If you regularly carry heavy loads or tow a trailer, then consider one of our heavy duty kit options
This kit will raise the vehicle by approx. 50mm (see actual dimensions below) allowing better ground clearance and improved looks. It can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.
For those using the vehicle in a continuously laden state (300kg+), please consider one of our heavy-duty options.
These components replace the original items. No other modifications to the vehicle are necessary. After fitting, we strongly recommend wheel alignment is carried out for optimum performance of your vehicle.
Key features
- Suitable for 3.0L V6 Models Only
- 2 Inch Lift Kit
- Improved ride comfort
- Increased Off-Road Ground Clearance
- Sintered Iron Piston Shocks with Large 40mm Bore
- Premium Grade Steel Coils
- All backed by our 2 year / 40,000km warranty
Vehicle Height Information
Front: 615mm hub centre to wheel arch
Rear: Approx. 50mm higher than standard.

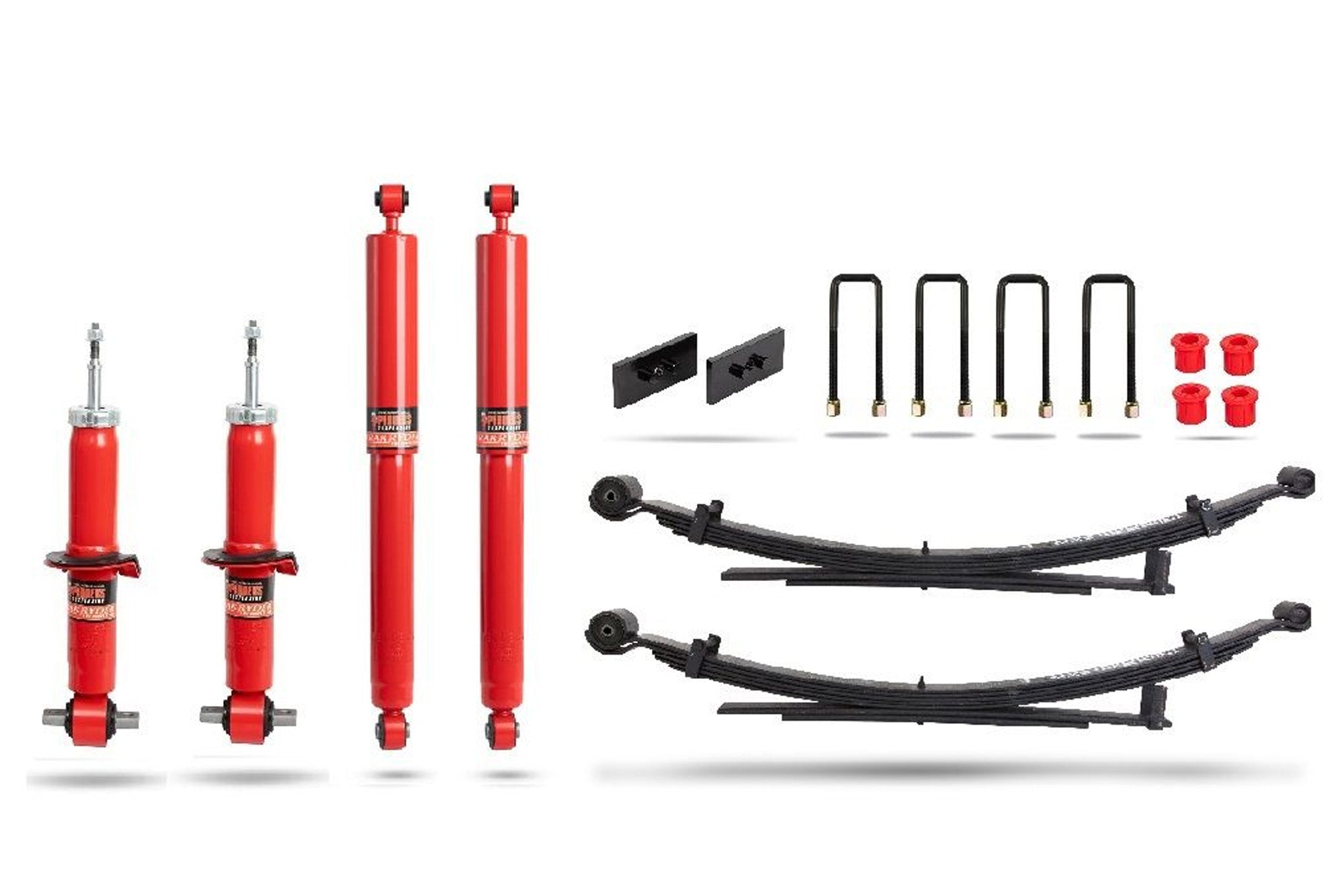

Contents of Gas Cell Shock Kit
x 2 - Pedders Trakryder Gas Shock, Front
x 2- Pedders Coil Spring, Front
x 2 - Pedders Rear Spring
x 2 - Pedders Trakryder Gas Shock, Rear
x 1- Pedders Urethane Lower Shackle Bushes
x 4 - Pedders U bolt
x 1 - Leaf spring adaptor kit
Contents of Foam Cell Kit
x 2 - Pedders Foam Cell Shock, Front
x 2- Pedders Coil Spring, Front
x 2 - Pedders Rear Spring
x 2 - Pedders Foam Cell Rear Shock
x 1- Pedders Urethane Lower Shackle Bushes
x 4 - Pedders U bolt
x 1 - Leaf spring adaptor kit
⚠ Additional fitment information
Suitable for 3.0L V6 Models
Whilst we endeavour to ensure all our listings are correct, if you have any concerns over the fitment of this accessory, please don't hesitate to get in touch.
The Volkswagen Amarok 2023+ 2-Inch Heavy Duty Suspension (by Pedders) is part of our huge range of accessories for the VW Amarok. Use the vehicle selector on our homepage to see everything we have for your VW Amarok. If you can't find what you're looking for, just get in touch.
